Guangshu has launched a 65W PD fast charger for laptops. Designed with a mature high-performance flyback solution, this adapter delivers stable and reliable output while maintaining a compact size.

It supports 65W PD fast charging and PPS voltage ranges, offering great compatibility with iPhones, Samsung devices, tablets and mainstream laptops to meet diverse fast-charging needs.

Below, Chargerhead will disassemble the product to check its internal workmanship and component selection.

Model: P65W-G5HC

Input: 100-240V~50/60Hz, 1.5A (Max)

Output: 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A, 65W

Manufacturer: Dongguan Guangshu Electrical Technology Co., Ltd.

This charger has passed CCC certification and Level VI energy efficiency certification.

Disassembly:

The high-voltage filtering electrolytic capacitor is supplied by Sancon.

Specifications: 400V, 27μF.

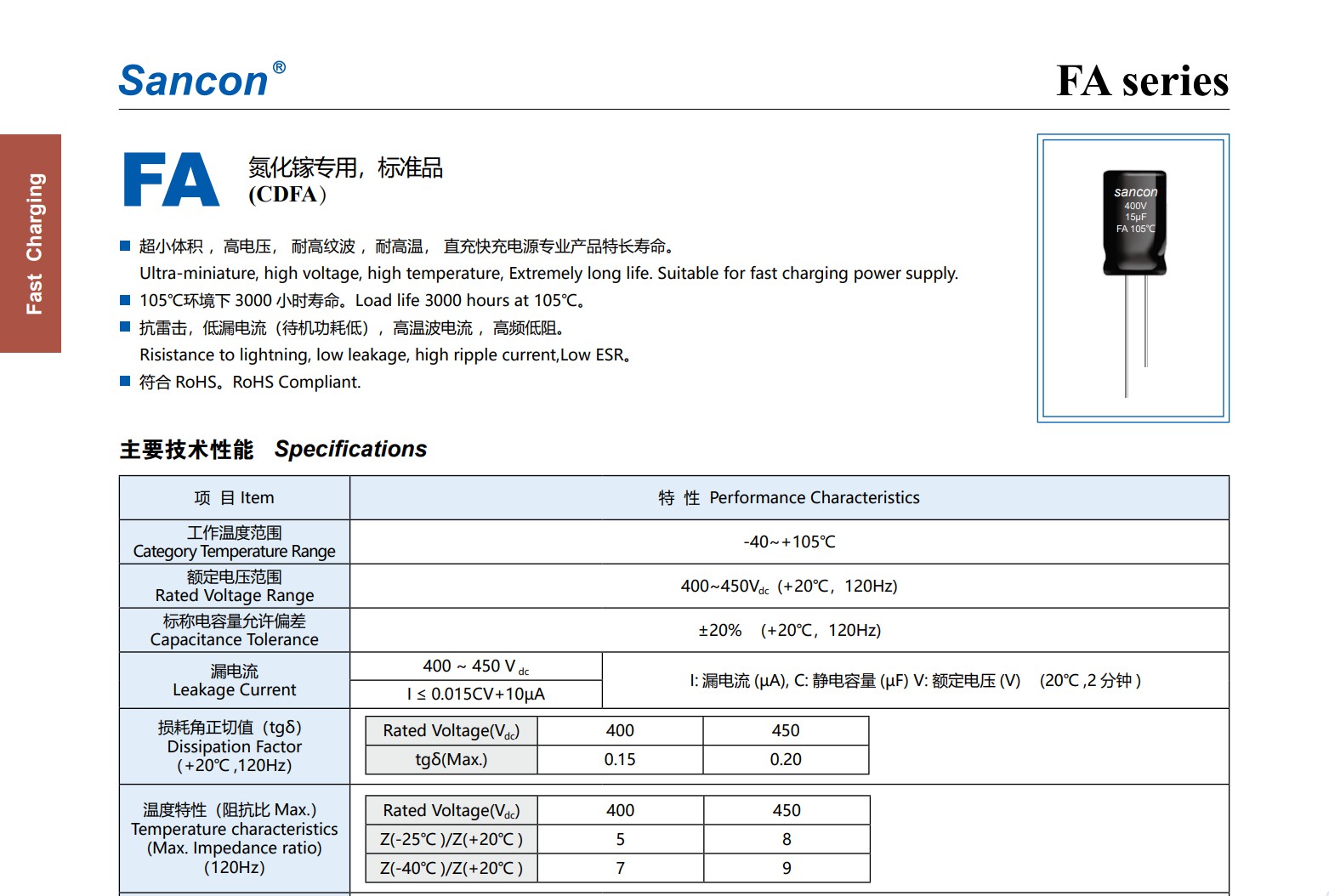

It belongs to the FA series, a compact-sized capacitor specially designed for GaN chargers. Featuring small size and high capacitance, it delivers stable and reliable performance.

For more details, please refer to the original article link. Nantong Sancon Electronics consistently provides high-quality premium capacitor products to support customers' development.
